From legacy electronics to production-ready products.
PCB reverse engineering, custom electronics, embedded firmware, mobile app development and product design — distinct disciplines coordinated when your project needs the full stack.

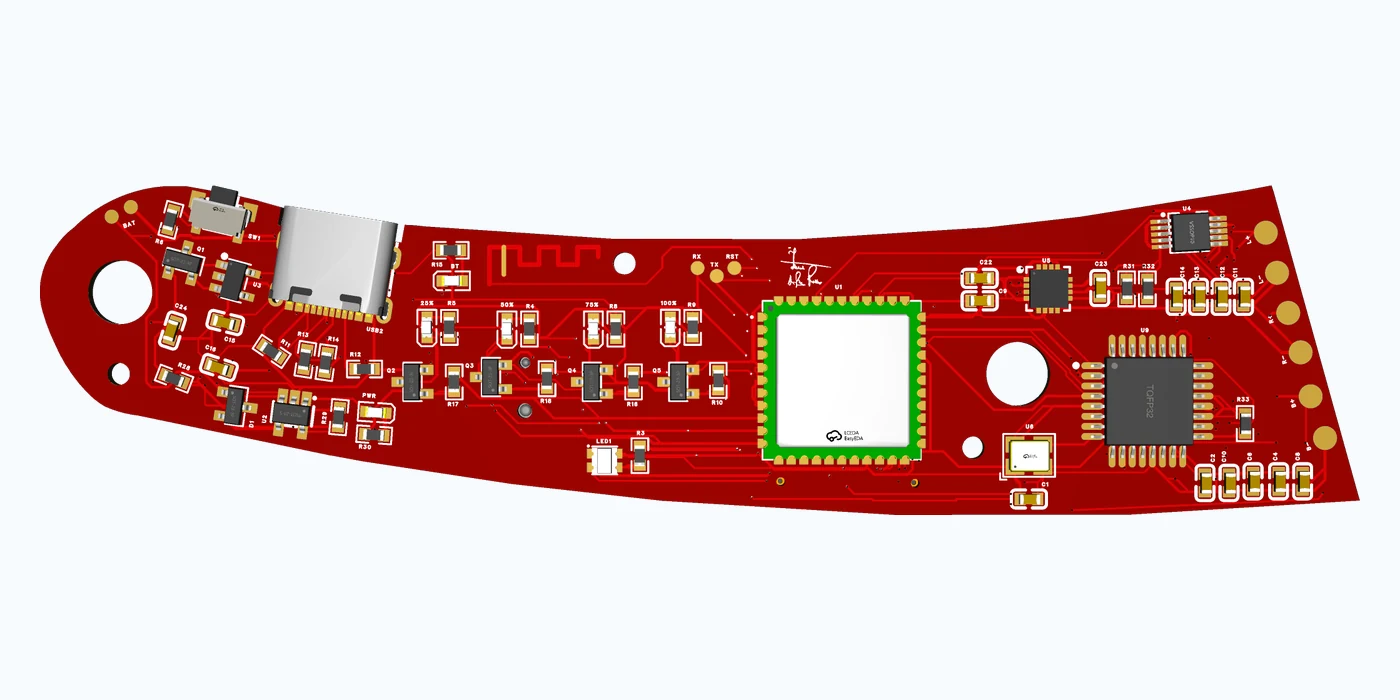

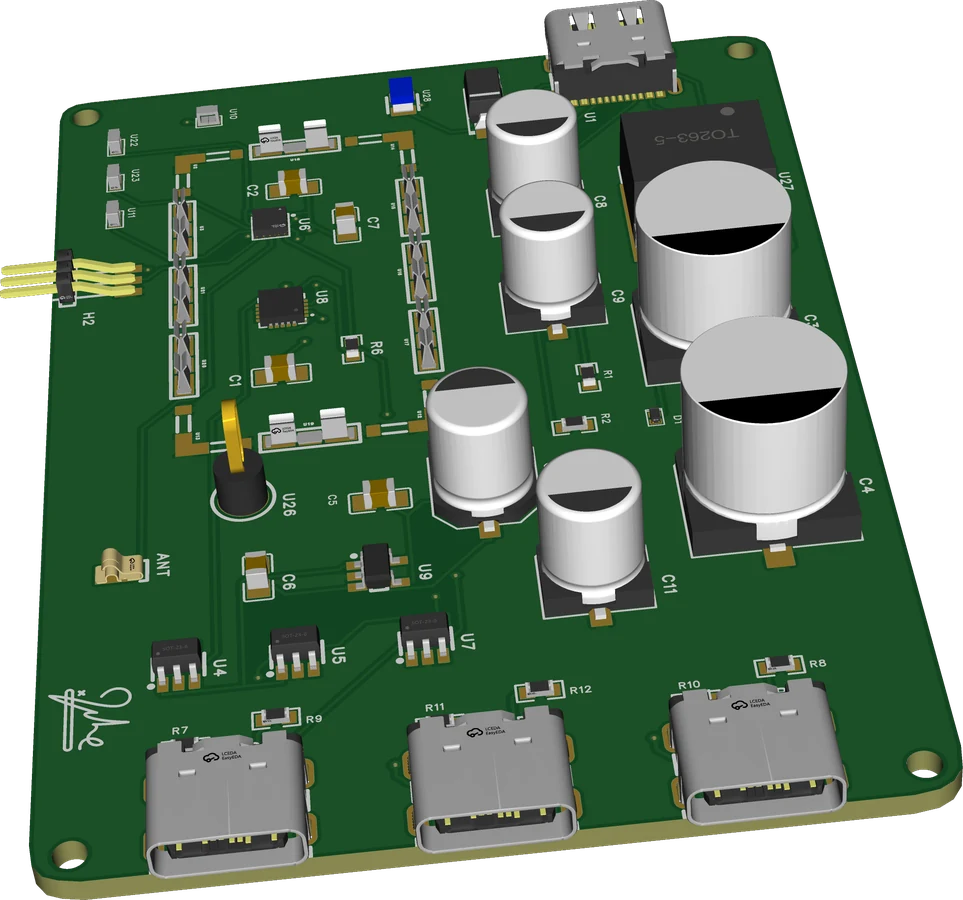

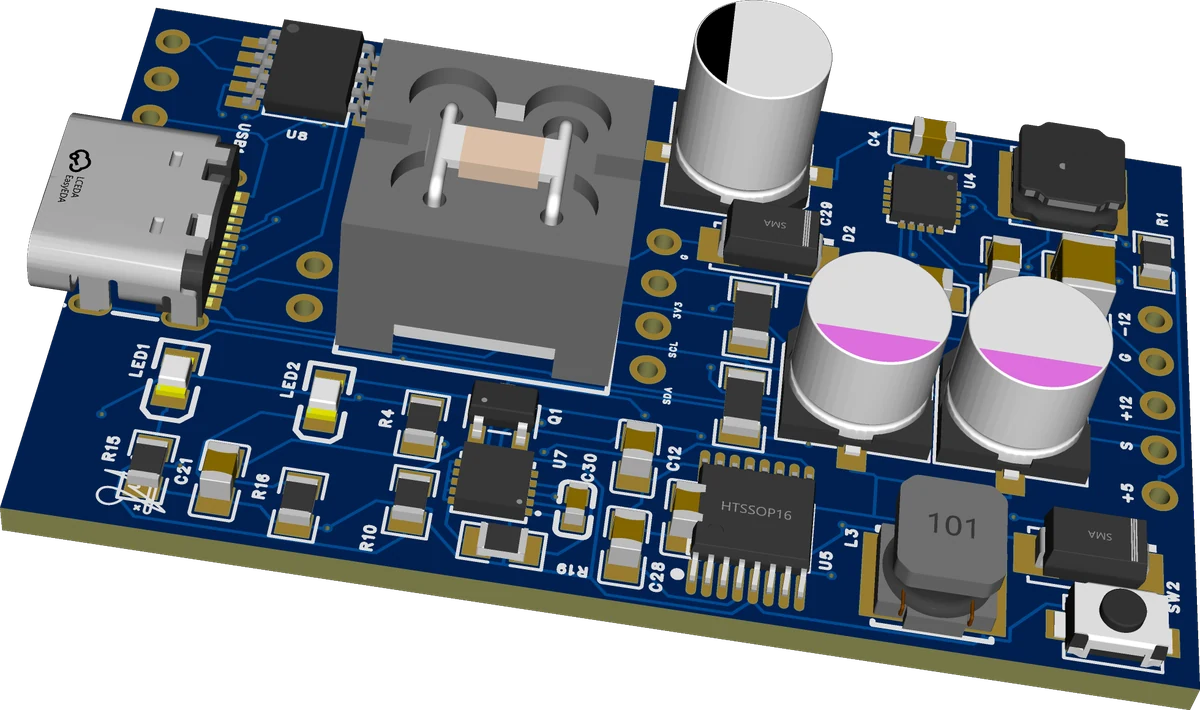

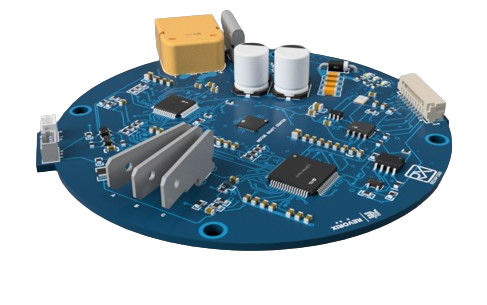

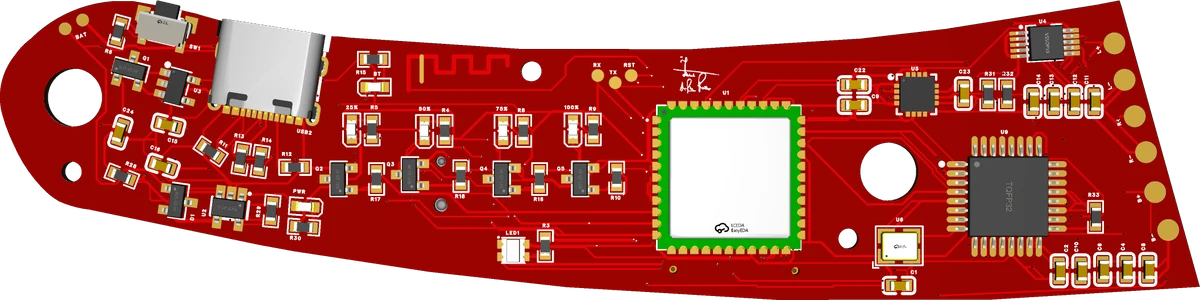

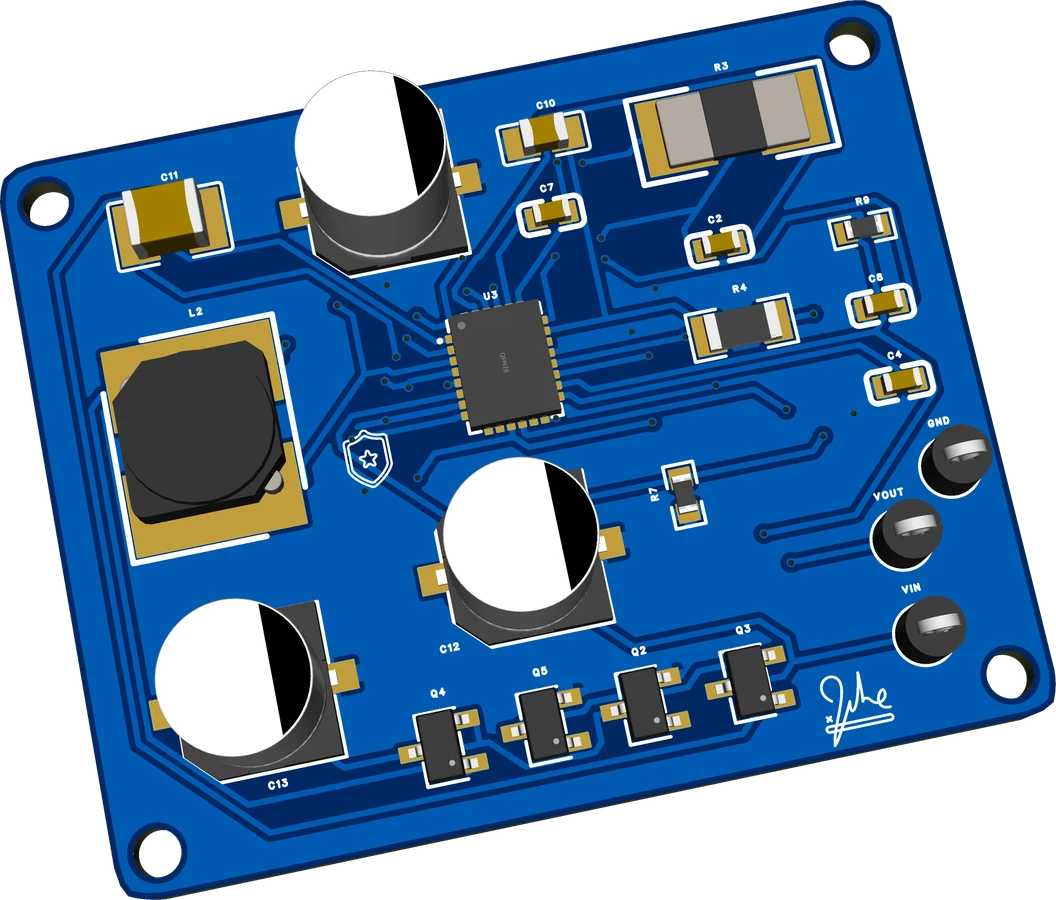

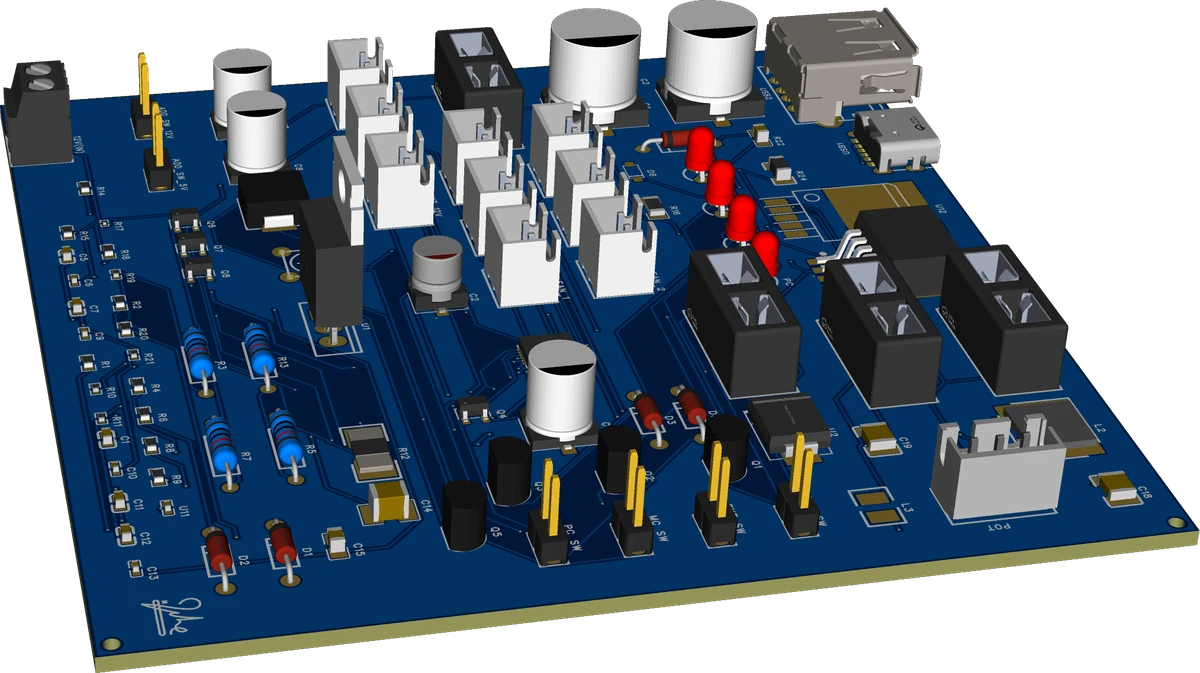

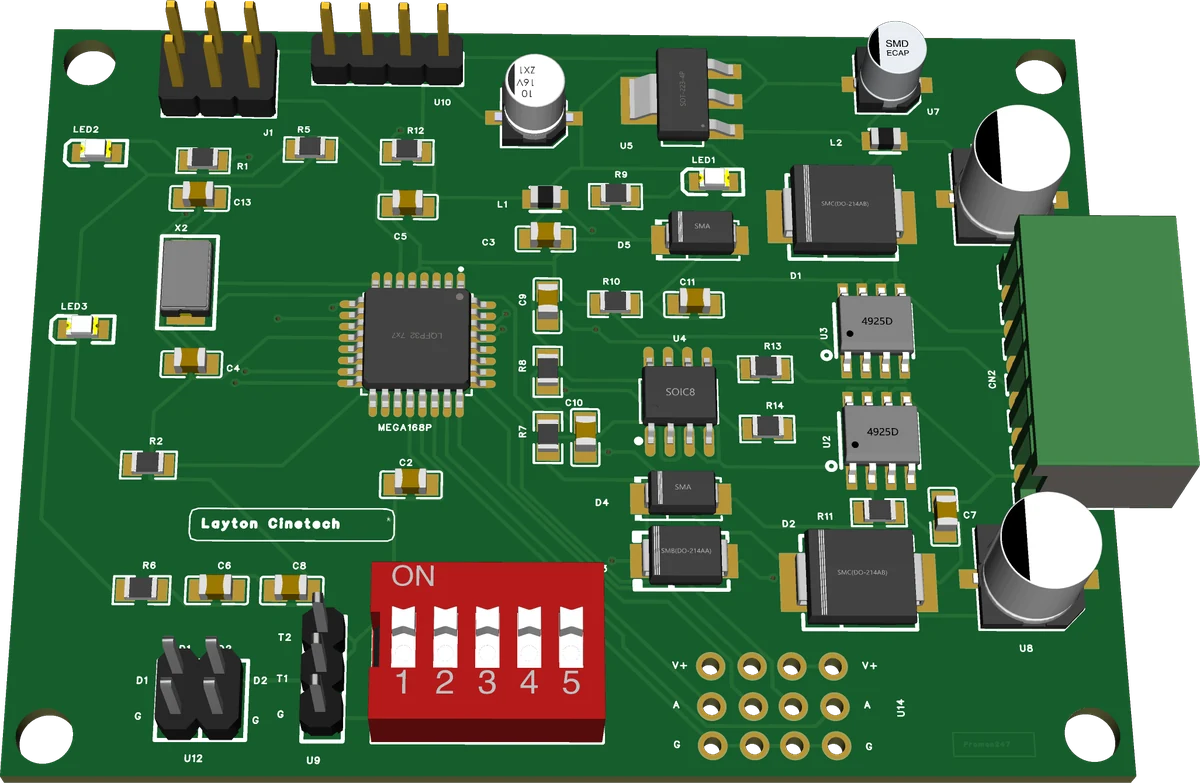

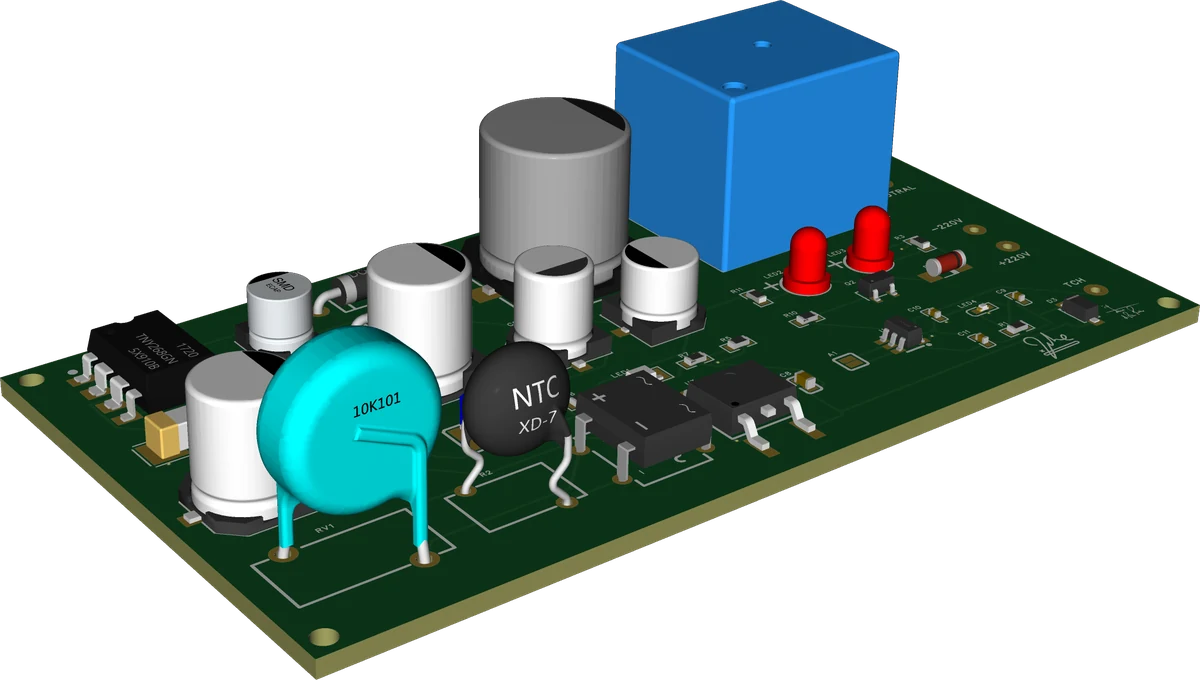

Recent PCB design

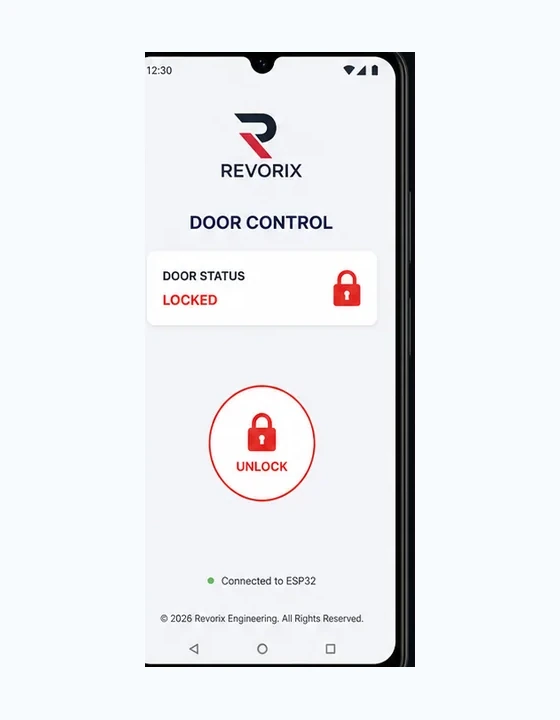

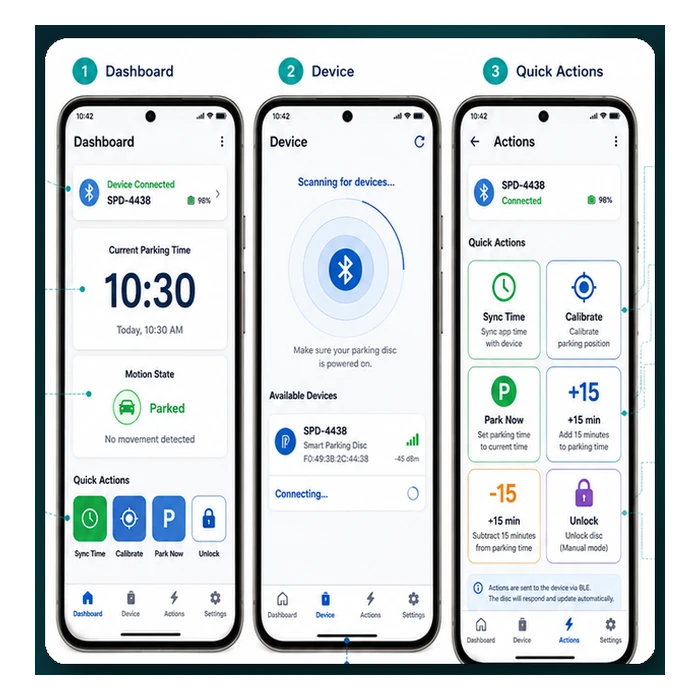

App UI & hardware controlObsoletePCB Solutions is now backed by Revorix Engineering.
The specialist reverse-engineering work you know at obsoletepcb.solutions now sits within a wider capability set for complete electronic product development.
Engineering support from board-level investigation to complete products.
Choose a focused service or combine disciplines for an end-to-end development path.
PCB Reverse Engineering
Recover schematics, BOMs, layouts and fabrication data from legacy or undocumented hardware.

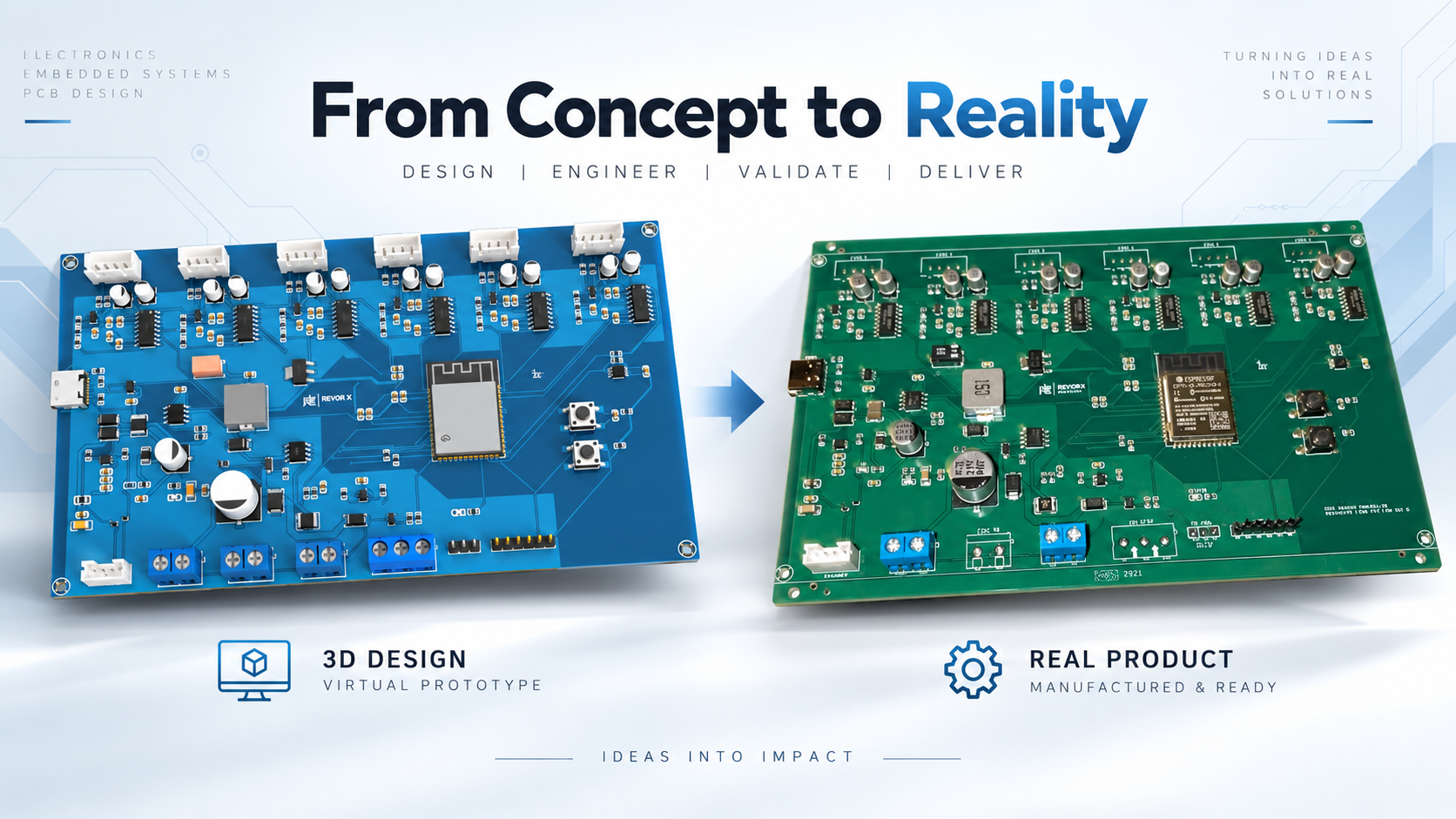

Explore servicePCB & Circuit Design
Custom schematic capture, component selection, multilayer layout, DFM and production files.
Explore serviceEmbedded Firmware
Device-side C/C++ firmware, sensors, wireless protocols, RTOS, diagnostics and hardware bring-up.

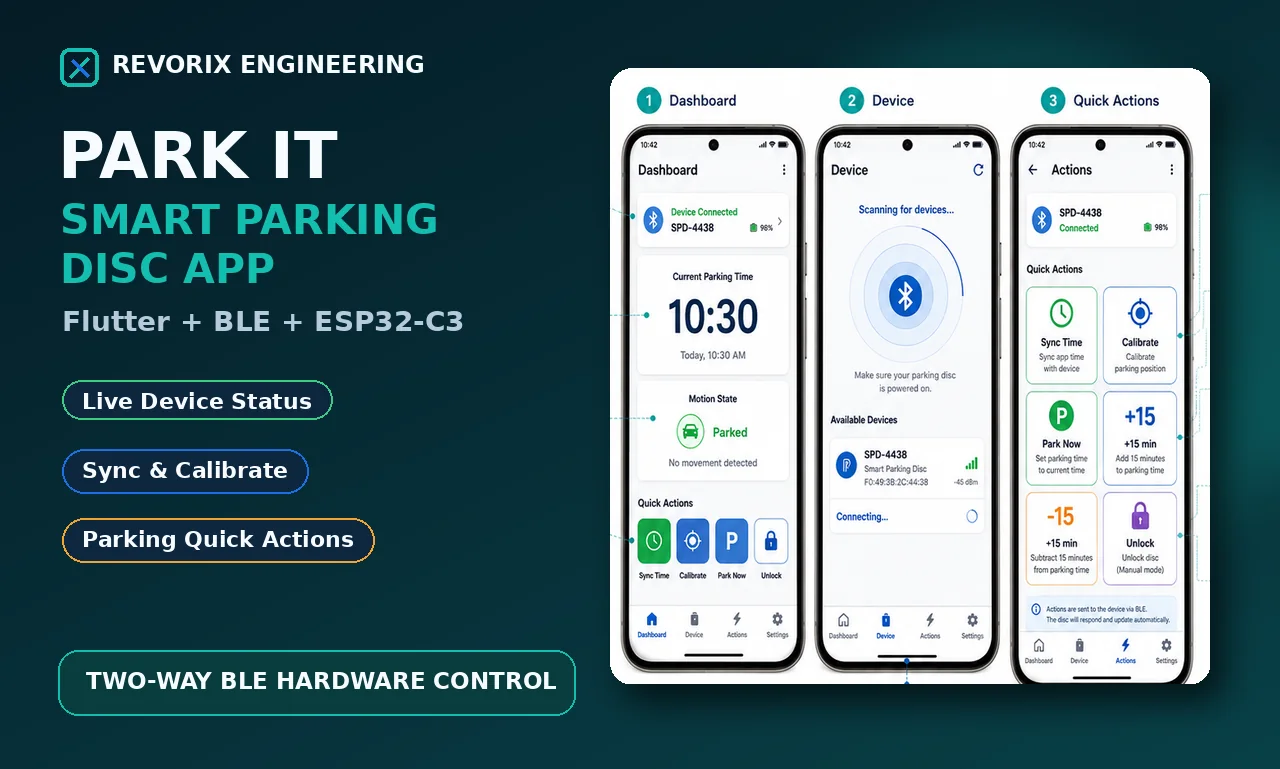

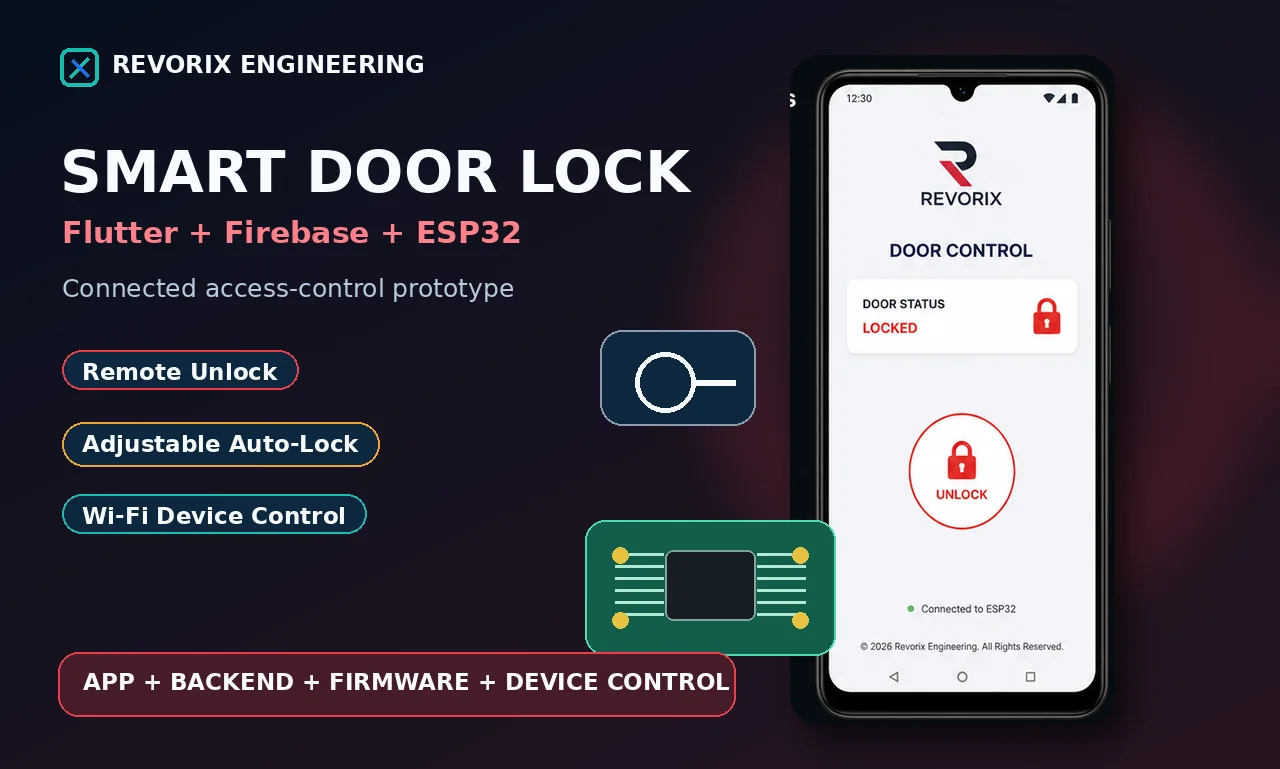

Explore serviceMobile App Development
Flutter UI/UX, Firebase/backend, APIs, BLE/Wi-Fi hardware control and real-device testing.

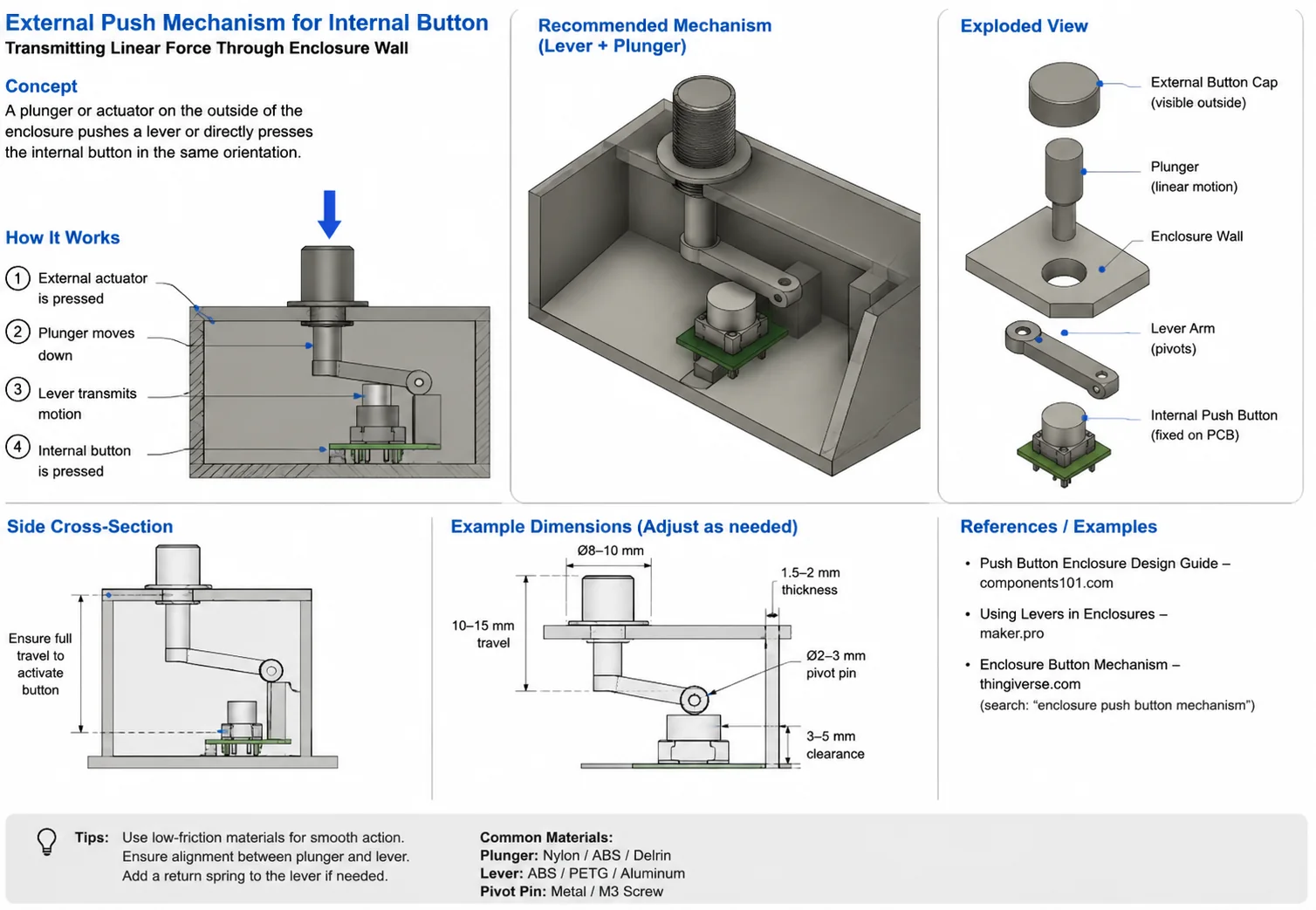

Explore service3D & Product Design
Enclosures, mounting strategy, mechanical interfaces, prototypes and DFM-ready CAD outputs.
Explore service

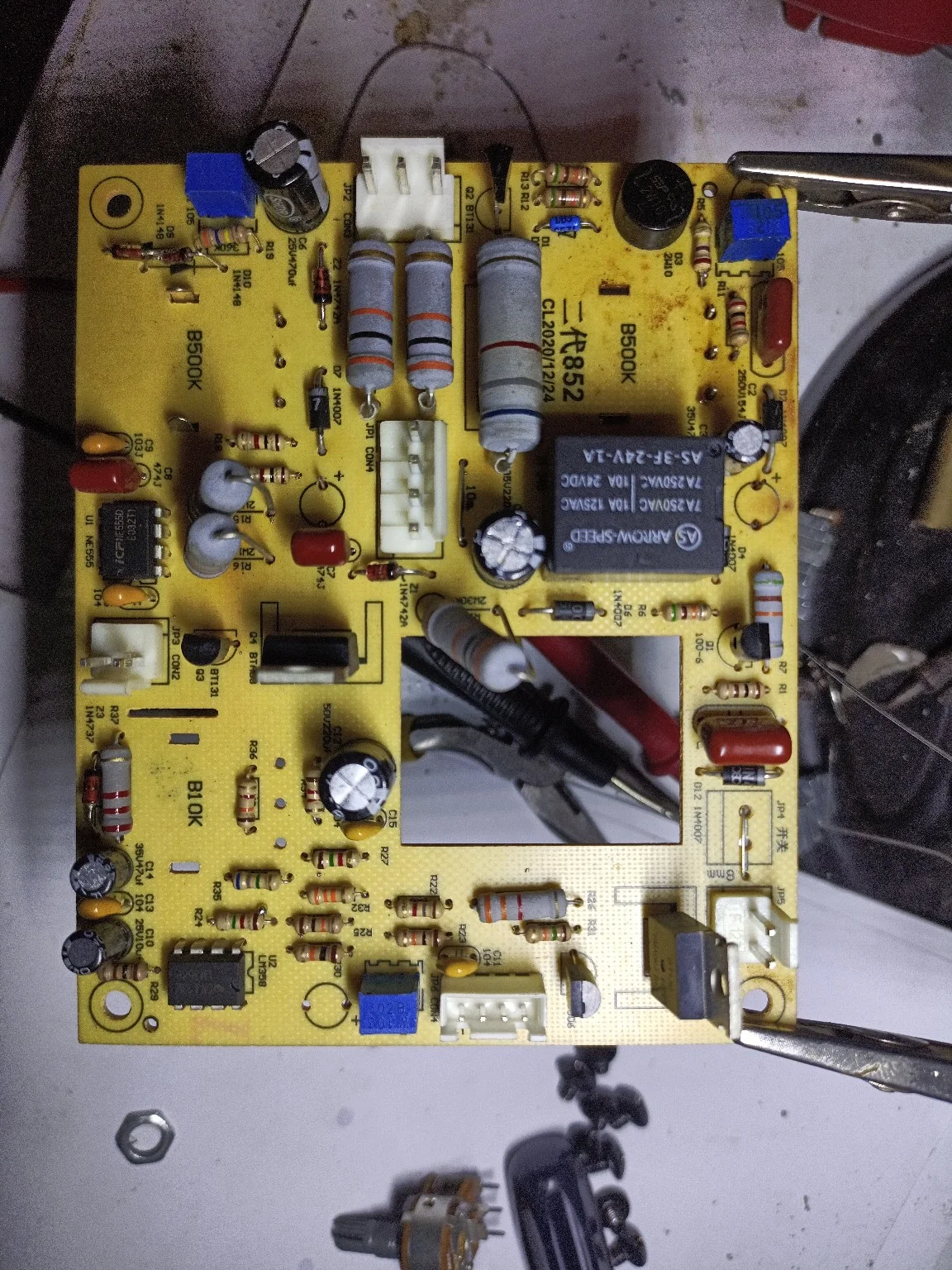

When documentation is missing, the board becomes the specification.
Revorix reconstructs the engineering intent behind existing electronics and turns the result into editable design data suitable for repair, redesign, migration or controlled reproduction.
- Schematic extraction and connectivity reconstruction
- BOM identification and substitute-component planning
- PCB layout recreation and fabrication outputs
- Design review for obsolete parts, risk and manufacturability

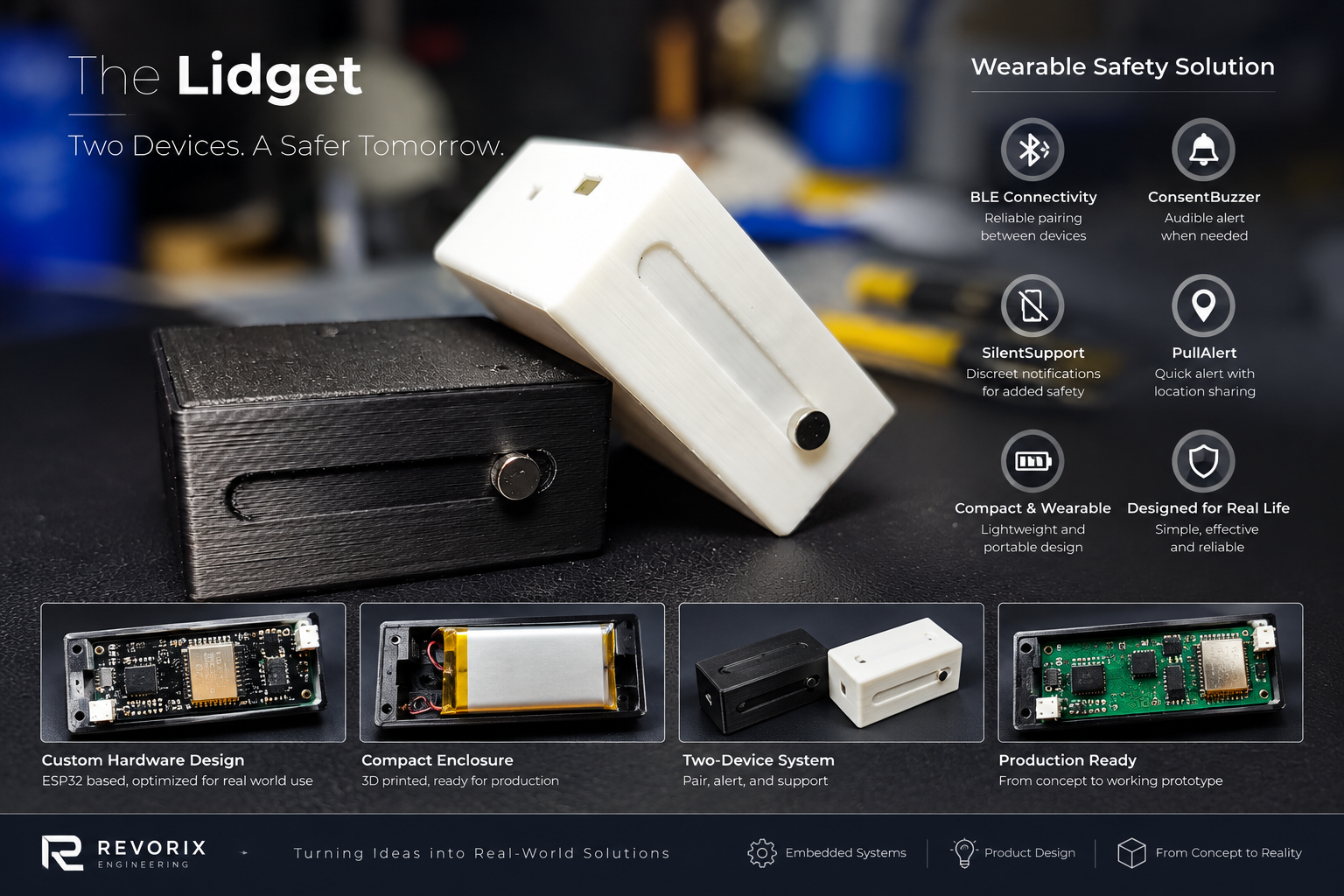

Hardware, firmware, apps and product development in one portfolio.
Trusted for communication, iteration and technically complete handoff.
★★★★★Clients highlighted patience, professionalism and clear communication through multiple revisions.
★★★★★Professional, friendly and on time.
★★★★★Clients highlighted proactive, detailed responses and continued support beyond delivery.
A disciplined path from unknowns to verified deliverables.
Clear milestones keep hardware projects reviewable and reduce expensive late-stage changes.
Discover
Requirements, existing hardware, constraints, interfaces and success criteria.
Engineer
Architecture, schematics, layouts, firmware, CAD and design review.
Validate
DRC/ERC, design checks, bring-up support, testing and iterative corrections.
Handoff
Editable sources, fabrication files, firmware, documentation and next-step support.
